تفاصيل المنتج:
شروط الدفع والشحن:
|
| مادة: | يموت الصب الألومنيوم | قوة: | 40-200 واط |
|---|---|---|---|
| جهد الإدخال: | 220-240VAC | التأثير البصري: | 130 ~ 150 م / ث (اختياري) |
| درجة بروتكتين: | IP66 | مستوى الحماية: | IK08 |
| عامل القوة: | PF≥0.95 | مؤشر عرض الألوان: | ra≥70 |
| نطاق التردد: | 50/60 هرتز | تتراوح ظروف العمل: | -40 ~ 45 درجة مئوية، 20% ~ 90% رطوبة نسبية |
| مقاس: | 445x210x75 ملم | ||

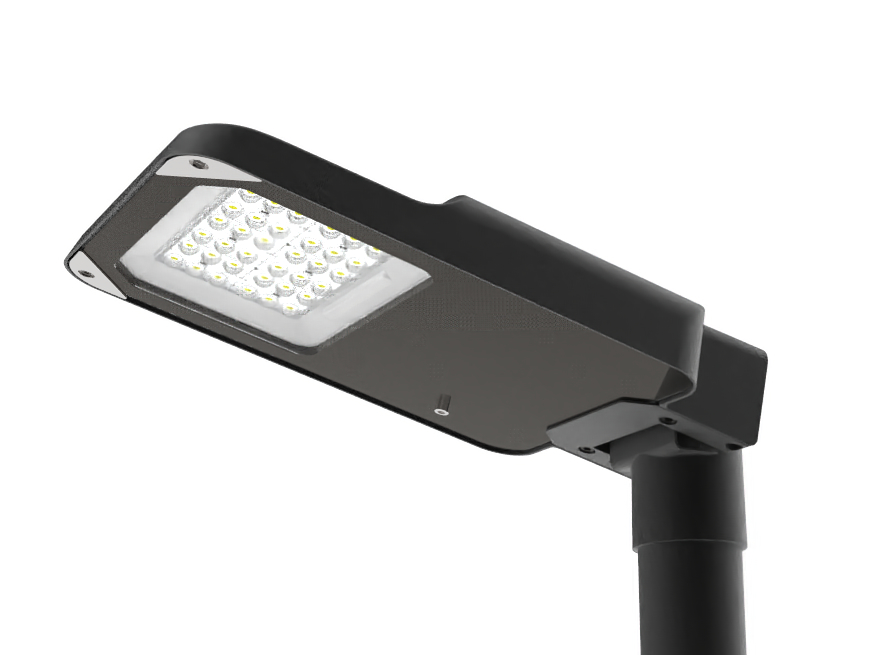

| إبراز: | Aluminium outdoor LED street light,IK08 IP66 LED street lighting,LED street light with 5-year warranty,IK08 IP66 LED street lighting,LED street light with 5-year warranty |
||
| Item No. | YASL-37-40 |
|---|---|
| Power | 60W |
| Lumen Efficiency | 130lm/w |
| Product Size (mm) | 483×242×75 |
| Working Voltage | AC100-265V 丨 50/60Hz |
|---|---|
| LED | LUMILEDS / OSRAM / CREE |
| CCT | 3000K, 4000K, 5000K, 5700K, 6500K |
| CRI | Ra>70 (standard)/ Ra>80 |
| Driver | PHILIPS/OSRAM/TRIDONIC/MEAN WELL/SOSEN/IEVENTRONICS |
| THD | <15% |
| Power Factor (PF) | PF>0.9 |
| IP Rating | IP66 |
|---|---|
| IK Rating | 1K09 |
| Holder | 60mm |
| Body Material | High pressure die-cast aluminum |
| Housing Color | Dark Grey/Black/Light Grey (available on request) |
| Cover Material | UV-resistant Polycarbonate |
| Working Environment | -20℃ ~ +50℃, 10%~90%RH |
|---|---|
| Lifespan L70 at 25℃ | > 50,000hrs |
| Mounting Type | Side entry or Vertical pole mounted ±15° |
|---|---|
| Dimmable | 1-10V Dimming / Timer Dimming |
| Protection Class | Class I (standard) / Class Ⅱ |
