80w 100w 120w SMD 3030 Led outdoor street lighting 3030 5050 led 3500K 4000K 5000K 6500K

الصين NingBo Die-Casting Man Technology Co.,ltd. الشهادات
الصين NingBo Die-Casting Man Technology Co.,ltd. الشهادات
مورد الذهب ، وفر لي الكثير من الوقت للقيام بعملية الشراء! ودائما إعطاء اقتراح المهنية ، ساعدني كثيرا في العمل! شكر!

—— إيان نيكولاس

منتجات ذات نوعية جيدة ، وانخفاض الأسعار وخدمات عالية الجودة. تستحق الثقة والتوصية شريك تجاري.

—— ميشال جوسيزي

مرحباً جيني ، لقد استلمت الشحنة.

—— رايان ريثرفورد

لقد تعاونت مع Die casting man لمدة 3 سنوات.

—— ديانا

ابن دردش الآن

80w 100w 120w SMD 3030 Led outdoor street lighting 3030 5050 led 3500K 4000K 5000K 6500K

80w 100w 120w SMD 3030 Led outdoor street lighting 3030 5050 led 3500K 4000K 5000K 6500K

صورة كبيرة :  80w 100w 120w SMD 3030 Led outdoor street lighting 3030 5050 led 3500K 4000K 5000K 6500K

تفاصيل المنتج:
مكان المنشأ: نينغبو، الصين
اسم العلامة التجارية: Die-casting Man
إصدار الشهادات: CE. EMC, LVD, ENEC, RoHs
رقم الموديل: ياسل-28-120 م
شروط الدفع والشحن:
الحد الأدنى لكمية: 1 قطعة
الأسعار: US$21.6 - US$44.6
تفاصيل التغليف: 1 قطعة/CTN
وقت التسليم: 7-35days
شروط الدفع: تي تي
القدرة على العرض: 50000pcs/m
مفصلة وصف المنتج
تدفق مضيئة: 3000lm-20000lm ضمان: 3-5 سنوات
درجة حرارة العمل: -40 درجة مئوية -50 درجة مئوية لون: RAL مخصصة. رقم مثل الرمادي والأسود والأبيض
مصدر الضوء: قاد جهد الإدخال: تيار متردد 90-305 فولت
CRI: > 70 مادة: سبائك الألومنيوم
إبراز:

80W SMD 3030 LED street light,120W outdoor LED lighting 5050,6500K LED street light housing

,

120W outdoor LED lighting 5050

,

6500K LED street light housing

80W 100W 120W SMD 3030 LED Outdoor Street Lighting
Product Specifications
Model NO. SL-28-40 SL-28-60 SL-28-90 SL-28-120 SL-28-160 SL-25-240
Input Wattage (W) 30/40/50 50/60/80 80/100/120 120/150 150/180/200 200/240/320
Installation Pipe Diameter φ48/60mm φ48/60mm φ60mm φ60mm φ60mm φ60mm
Installation Height (m) 3-8 4-8 6-10 8-12 8-12 8-14
Input Voltage: 90~305Vac
Frequency Range: 50/60Hz
Power Factor: ≥0.9
Light Source: LED
Driver Options: Inventronics, Meanwell, other brands upon request
Luminaire Efficacy: 130-190 lm/w
Color Temperature (CCT): 4000K (3000K/5000K/5700K upon request)
Color Rendering Index (Ra): ≥70
Dimming Options: Dali (optional), 1-10V (optional), PWM (optional), Smart control management system (upon request)
Product Features
  • Product Name: LED Street Light Fixtures
  • Color: Customized RAL No. (Gray, Black, White)
  • Beam Angle: 120°
  • Dimension: Customized
  • Working Temperature: -40°C to 50°C
  • CRI: >70
  • Projector Lamp Module: Yes
  • Aluminium LED Street Lamp: Yes
Technical Parameters
Working Temperature -40°C to 50°C
Color Temperature 3000K-6000K
Luminous Flux 3000lm-20000lm
Lifespan >50,000 hours
Light Source LED
Warranty 3-5 Years
Power Factor >0.95
CRI >70
Dimension Customized
IP Rating IP65
Applications & Certifications
These LED street lights are designed to be durable and long-lasting, with a lifespan of over 50,000 hours. They feature high efficiency with a power factor greater than 0.95, ensuring reduced energy consumption and cost-effectiveness compared to traditional lighting systems.
Certified with CE, EMC, LVD, ENEC, and RoHS standards, ensuring the highest levels of safety, quality, and performance. Rated IP66 and IK08 for superior resistance to dust, water, and impact, making them ideal for harsh outdoor environments.
Available in customizable colors including gray, black, and white to match any aesthetic requirement. Backed by a 3-5 year warranty for customer peace of mind and investment protection.
Ordering Information
Minimum Order: 1 piece
Price Range: US$21.6 to US$44.6
Packaging: Single carton box
Delivery Time: 7 to 35 days
Payment Terms: TT
Supply Capacity: Up to 50,000 pieces per month

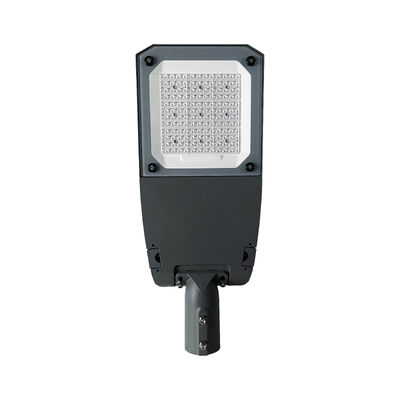

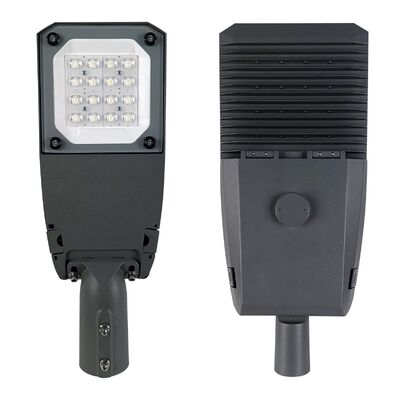

Product Images
80w 100w 120w SMD 3030 Led outdoor street lighting 3030 5050 led 3500K 4000K 5000K 6500K 0 80w 100w 120w SMD 3030 Led outdoor street lighting 3030 5050 led 3500K 4000K 5000K 6500K 1
